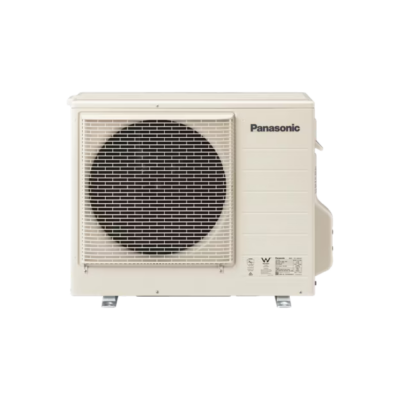

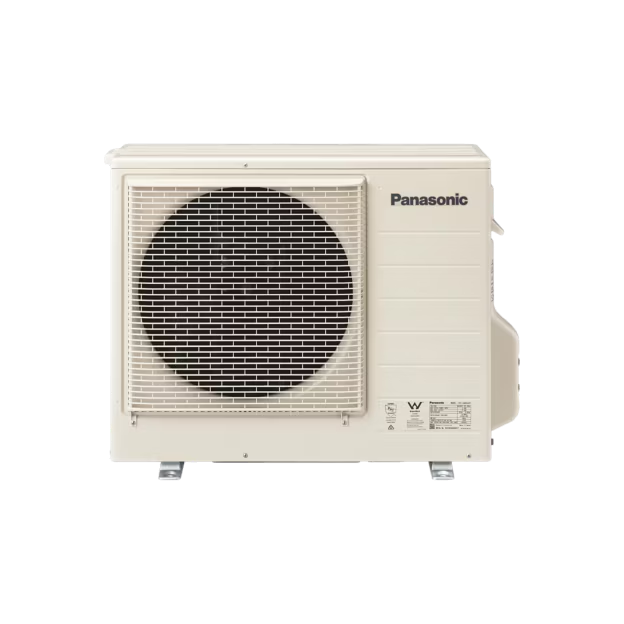

Panasonic Deluxe Series CO₂ Heat Pump Hot Water System

Description

The Panasonic Deluxe Series HE-UM60CR is a 6kW split-system CO₂ heat pump hot water system built for New Zealand homes. Using natural CO₂ (R744) refrigerant and advanced heat pump technology, it draws heat from the outside air to heat your water — cutting hot water running costs by up to 70% compared with a standard electric cylinder.*

Lower Running Costs

With a COP of up to 6.1, the HE-UM60CR delivers several units of heat for every unit of electricity it uses. That means noticeably lower power bills, plus a smaller carbon footprint for your household.

Natural CO₂ Refrigerant

CO₂ (R744) is a natural refrigerant with a Global Warming Potential of just 1, making it one of the most environmentally responsible choices available in a hot water heat pump.

Reliable Hot Water in Cold Weather

The outdoor unit operates in ambient temperatures from -10°C to 43°C, so it keeps delivering hot showers through the colder months in most parts of New Zealand.

Choice of Tank Size

The heat pump pairs with a separate storage tank in 215L, 275L or 340L sizes, with enamel or stainless steel options, so you can match the system to your household size and hot water usage.

Quiet Operation

With a sound level of just 37dB, the outdoor unit runs quietly — ideal for installation near bedrooms, living areas or neighbouring properties.


Technology Highlights

Stratified Split-System Heating

Panasonic’s split-type design heats water from the top of the tank first, giving quick access to hot water even while the system is reheating. It can heat 200L to 40°C in less than half the time of an integrated system while using around 36% less energy.**

Smart App Control

Monitor and control your hot water system remotely from your smartphone, so you can adjust settings wherever you are.

Plug-in Compatible

The outdoor unit runs on a single-phase 230–240V supply and is plug-in compatible, with a 2.1m power cord and a maximum current draw of just 10A.

Built for the Outdoors

An IPX4 ingress protection rating and compact footprint (799 x 672 x 299mm, 46kg) make the outdoor unit durable and easy to position.

* Energy savings compared with electric storage water heaters; actual savings vary with inlet water temperature, usage patterns and installation. COP 6.1 measured at 32.5°C ambient / 21°C inlet water. ** Compared with an integrated heat pump system, at 19°C ambient / 17°C water / 200L tank / 40°C target outlet, heat pump only.
