$1,517.06–$1,654.97Price range: $1,517.06 through $1,654.97 Incl GST
Free Delivery NZ Wide (ex RD). The price listed is for supply only, for supply & installation enquiries visit our Hot Water Cylinder Installation page or call 0800 234 800 and speak to your local rep.

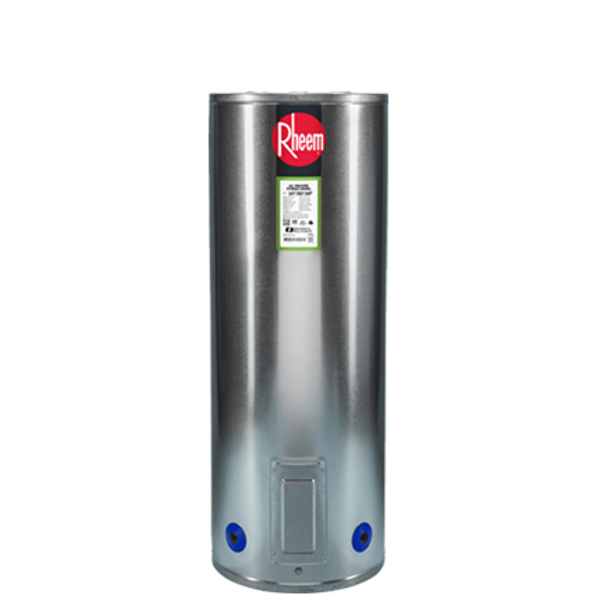

The Rheem All-Pressure Vitreous Enamel (APVE) 135L is an indoor electric hot water cylinder that works on any water pressure. Connect it to your existing low pressure system today, then upgrade to mains pressure later with a simple valving change, with no new cylinder needed. The 135L suits a household of 1 to 2 people, such as a couple, a small house or a unit.
Six Shapes to Fit Your Cupboard
Replacing a cylinder usually means working with the cupboard you’ve already got. The 135L comes in six different footprints, from a tall, slim 488mm wide unit to a short, wide 610mm unit just 795mm high, so you can match the space without building work. Choose your size and element from the options above.
Dimensions (W x H)
Shape
Model
488 x 1320mm
Tall & slim
14813513AP (2kW) / 14813515AP (3kW)
510 x 1140mm
Mid-height
16T13513AP (2kW)
540 x 1030mm
Mid-height
54T13513AP (2kW)
560 x 950mm
Short
14T13513AP (2kW)
580 x 885mm
Short & wide
15813513AP (2kW) / 15813515AP (3kW)
610 x 795mm
Lowest profile
12T13513AP (2kW)
Sizing is within +/- 5mm due to manufacturing. Allow extra clearance for pipework and seismic restraints.
2kW or 3kW Element?
Every footprint comes with a 2.0kW copper screw-in element, and the 488 x 1320mm and 580 x 885mm units are also available with 3.0kW. A 3kW element reheats the cylinder faster, while 2kW suits smaller households. Both run on New Zealand’s standard 230V supply and must be connected by a registered electrician.
Built to Last
The vitreous enamel lining gives the inside of the cylinder a hard, hygienic finish that resists rust and corrosion, and it handles a wide range of New Zealand water conditions. The cylinder has a galvanised outer finish and a triple inlet as standard.
Made in New Zealand
The APVE range is designed and manufactured in New Zealand, meets New Zealand Minimum Energy Performance Standards (MEPS), and is backed by Rheem’s nationwide sales and service network.
Warranty
Domestic installations are covered by a 10-year cylinder replacement warranty, 5 years cylinder labour, and 1 year parts and labour.
$1,526.25–$1,700.95Price range: $1,526.25 through $1,700.95 Incl GSTSelect options
This product has multiple variants. The options may be chosen on the product page
Rheem All-Pressure Indoor 135L Hot Water Cylinder
$1,517.06 – $1,654.97Price range: $1,517.06 through $1,654.97 Incl GST
Free Delivery NZ Wide (ex RD). The price listed is for supply only, for supply & installation enquiries visit our Hot Water Cylinder Installation page or call 0800 234 800 and speak to your local rep.
Description
The Rheem All-Pressure Vitreous Enamel (APVE) 135L is an indoor electric hot water cylinder that works on any water pressure. Connect it to your existing low pressure system today, then upgrade to mains pressure later with a simple valving change, with no new cylinder needed. The 135L suits a household of 1 to 2 people, such as a couple, a small house or a unit.
Six Shapes to Fit Your Cupboard
Replacing a cylinder usually means working with the cupboard you’ve already got. The 135L comes in six different footprints, from a tall, slim 488mm wide unit to a short, wide 610mm unit just 795mm high, so you can match the space without building work. Choose your size and element from the options above.
Sizing is within +/- 5mm due to manufacturing. Allow extra clearance for pipework and seismic restraints.
2kW or 3kW Element?
Every footprint comes with a 2.0kW copper screw-in element, and the 488 x 1320mm and 580 x 885mm units are also available with 3.0kW. A 3kW element reheats the cylinder faster, while 2kW suits smaller households. Both run on New Zealand’s standard 230V supply and must be connected by a registered electrician.
Built to Last
The vitreous enamel lining gives the inside of the cylinder a hard, hygienic finish that resists rust and corrosion, and it handles a wide range of New Zealand water conditions. The cylinder has a galvanised outer finish and a triple inlet as standard.
Made in New Zealand
The APVE range is designed and manufactured in New Zealand, meets New Zealand Minimum Energy Performance Standards (MEPS), and is backed by Rheem’s nationwide sales and service network.
Warranty
Domestic installations are covered by a 10-year cylinder replacement warranty, 5 years cylinder labour, and 1 year parts and labour.
Not sure which size or footprint fits your home? Give us a call on 0800 234 800 or get a free quote.
Additional information
488 x 1320mm, 510 x 1140mm, 540 x 1030mm, 560 x 950mm, 580 x 885mm, 610 x 795mm
2.0kW, 3.0kW
Rheem
All Pressure Vitreous Enamel (APVE)
All Pressure (low or mains)
135L (approx.)
Indoors
Copper (T/P) Screw-In
60°C to 75°C
850kPa
RP ¾ 20mm
Triple Inlet
230–240V / 50Hz AC
Galvanised
Vitreous Enamel
New Zealand
10 Years
5 Years
1 Year
