Free Delivery NZ Wide (ex RD). The price listed is for supply only, for supply & installation enquiries visit our Hot Water Cylinder Installation page or call 0800 234 800 and speak to your local rep.

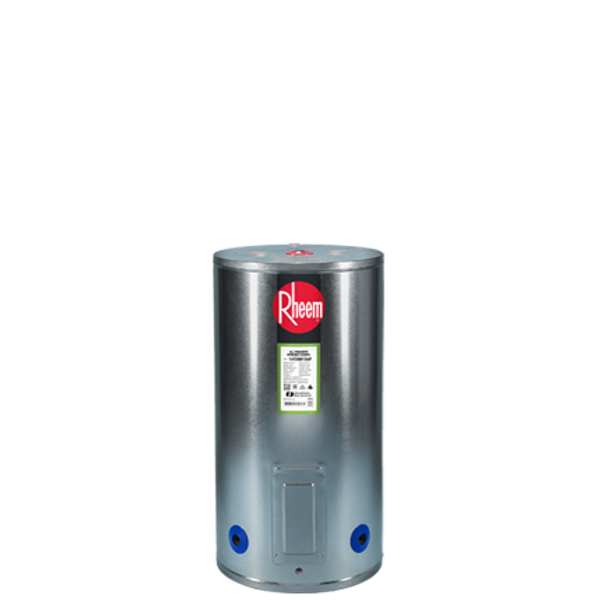

The Rheem All-Pressure Vitreous Enamel (APVE) 90L is a compact indoor electric hot water cylinder that works on any water pressure. Connect it to your existing low pressure system today, then upgrade to mains pressure later with a simple valving change, with no new cylinder needed. Rheem rates the 90L for one person, making it a good fit for a studio, small unit, granny flat or sleepout.
Two Shapes to Fit Small Spaces
The 90L comes in two footprints: a slim 488mm wide unit for narrow cupboards, or a low 510mm wide unit that stands just 780mm high. Choose your size and element from the options above.
Dimensions (W x H)
Shape
Model
488 x 920mm
Slim
14809013AP (2kW) / 14809015AP (3kW)
510 x 780mm
Low profile
14T09013AP (2kW)
Sizing is within +/- 5mm due to manufacturing. Allow extra clearance for pipework and seismic restraints.
2kW or 3kW Element?
The 488 x 920mm unit is available with a 2.0kW or 3.0kW copper screw-in element, and the 510 x 780mm unit comes with a 2.0kW element. A 3kW element reheats the cylinder faster, while 2kW suits lighter use. Both run on New Zealand’s standard 230V supply and must be connected by a registered electrician.
Built to Last
The vitreous enamel lining gives the inside of the cylinder a hard, hygienic finish that resists rust and corrosion, and it handles a wide range of New Zealand water conditions. The cylinder has a galvanised outer finish and a triple inlet as standard.
Made in New Zealand
The APVE range is designed and manufactured in New Zealand, meets New Zealand Minimum Energy Performance Standards (MEPS), and is backed by Rheem’s nationwide sales and service network.
Warranty
Domestic installations are covered by a 10-year cylinder replacement warranty, 5 years cylinder labour, and 1 year parts and labour.
$1,517.06–$1,654.97Price range: $1,517.06 through $1,654.97 Incl GSTSelect options
This product has multiple variants. The options may be chosen on the product page
$2,137.05–$2,144.12Price range: $2,137.05 through $2,144.12 Incl GSTSelect options
This product has multiple variants. The options may be chosen on the product page
$1,526.25–$1,700.95Price range: $1,526.25 through $1,700.95 Incl GSTSelect options
This product has multiple variants. The options may be chosen on the product page
Rheem All-Pressure Indoor 90L Hot Water Cylinder
$2,164.81 Incl GST
Free Delivery NZ Wide (ex RD). The price listed is for supply only, for supply & installation enquiries visit our Hot Water Cylinder Installation page or call 0800 234 800 and speak to your local rep.
Description
The Rheem All-Pressure Vitreous Enamel (APVE) 90L is a compact indoor electric hot water cylinder that works on any water pressure. Connect it to your existing low pressure system today, then upgrade to mains pressure later with a simple valving change, with no new cylinder needed. Rheem rates the 90L for one person, making it a good fit for a studio, small unit, granny flat or sleepout.
Two Shapes to Fit Small Spaces
The 90L comes in two footprints: a slim 488mm wide unit for narrow cupboards, or a low 510mm wide unit that stands just 780mm high. Choose your size and element from the options above.
Sizing is within +/- 5mm due to manufacturing. Allow extra clearance for pipework and seismic restraints.
2kW or 3kW Element?
The 488 x 920mm unit is available with a 2.0kW or 3.0kW copper screw-in element, and the 510 x 780mm unit comes with a 2.0kW element. A 3kW element reheats the cylinder faster, while 2kW suits lighter use. Both run on New Zealand’s standard 230V supply and must be connected by a registered electrician.
Built to Last
The vitreous enamel lining gives the inside of the cylinder a hard, hygienic finish that resists rust and corrosion, and it handles a wide range of New Zealand water conditions. The cylinder has a galvanised outer finish and a triple inlet as standard.
Made in New Zealand
The APVE range is designed and manufactured in New Zealand, meets New Zealand Minimum Energy Performance Standards (MEPS), and is backed by Rheem’s nationwide sales and service network.
Warranty
Domestic installations are covered by a 10-year cylinder replacement warranty, 5 years cylinder labour, and 1 year parts and labour.
Not sure which size or footprint fits your home? Give us a call on 0800 234 800 or get a free quote.
Additional information
488 x 920mm, 510 x 780mm
2.0kW, 3.0kW
Rheem
All Pressure Vitreous Enamel (APVE)
All Pressure (low or mains)
90L (approx.)
Indoors
Copper (T/P) Screw-In
60°C to 75°C
850kPa
RP ¾ 20mm
Triple Inlet
230–240V / 50Hz AC
Galvanised
Vitreous Enamel
New Zealand
10 Years
5 Years
1 Year
